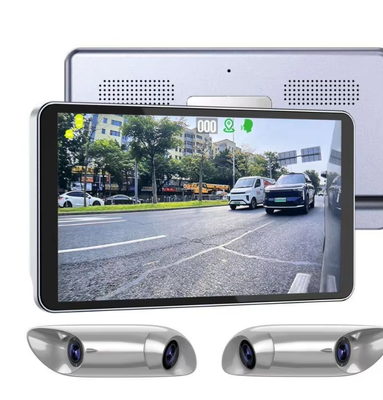

AHD 1080P Dual-Lens Blind Spot Camera with Monitor - 140° Wide Angle IP67 Waterproof Vehicle Side View Monitoring System for Car Van SUV
The dual view blind spot monitoring kit includes two AHD 1080P dual-lens cameras and a dedicated HD display. Each camera features a 140° wide viewing angle to capture front wheel and rear side road conditions at the same time.
With IP67 waterproof grade, the cameras can resist rain splash and dust erosion all year round. The on-board monitor presents two-channel real-time footage to help drivers avoid side collision risks during lane change and turning.
This wired side monitoring system fits most passenger cars, vans and light commercial vehicles perfectly, greatly improving driving safety on urban roads and highways.
| Category | Parameter Value |
|---|---|
| Product Type | Dual Lens Blind Spot Side View Camera System |
| Camera Resolution | AHD 1080P |
| View Angle | 140 Degree Wide Angle |
| Night Vision | Infrared Night Vision |
| Waterproof Rating | IP67 |
| Voltage | 12V DC Vehicle Power Supply |
| Lens | Dual Glass Lenses |
| Screen Size | 5 Inch HD Display |
| Wired or Wireless | Wired Transmission |
| Working Temperature | -20℃ ~ +70℃ |
| Vehicle Compatibility | Cars, SUV, Vans, Light Commercial Vehicles |
The dual-lens structure of each camera achieves dual-angle monitoring, which covers the front tire area and rear blind zone of the vehicle. Combined with two side cameras, it forms comprehensive side road observation, effectively filling the visual gap of rearview mirrors and preventing scraping accidents during turning and overtaking.
Equipped with high-sensitivity image sensor and infrared fill lights, this AHD 1080P camera maintains clear color images at dusk and night. Dim road conditions can be displayed on the monitor without blurred picture, guaranteeing safe driving on poorly lit urban roads.
The whole camera shell adopts sealed injection molding process and reaches IP67 waterproof standard. It can work normally in heavy rain, car washing and dusty road environments, and will not be damaged by water ingress or sand erosion for long-term outdoor use.
The matched HD monitor supports dual-screen split display. Drivers can watch two groups of side video at the same time. It also supports automatic picture switching when turning, so you do not need to manually adjust the screen while driving.
The side view monitoring system is widely compatible with 12V vehicles. Besides ordinary passenger cars, it also works well for vans, light trucks and small commercial vehicles, which is an essential safety upgrade for both private cars and fleet vehicles.
