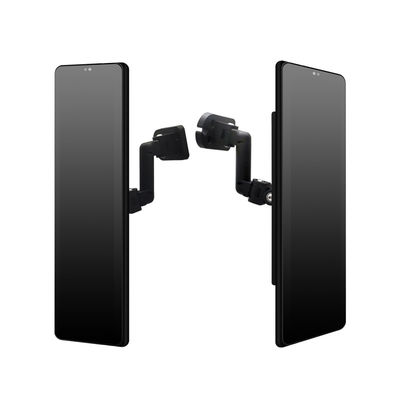

Digital Side Mirror Camera System with Dual HD Cameras Wide-Angle Blind Spot Monitoring

30セット
MOQ
negotiable
価格
Digital Side Mirror Camera System with Dual HD Cameras Wide-Angle Blind Spot Monitoring
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品: デュアルHDカメラを備えたデジタルサイドミラーカメラシステム 広角ブラインドスポットモニタリング トラックおよびバスの電子ミラー交換
保証: 1年
OEM、ODM: サポート
カメラの解像度: 720P / 1080P (オプション)
カメラタイプ: デュアルレンズサイドビューカメラ
動作電圧: 9V～36Vの幅広い電圧入力
ナイトビジョン: 低照度センサー + HDR 強化
ハイライト:

digital side mirror camera system

,

dual HD cameras blind spot monitoring

,

wide-angle rear view mirror monitor
基本情報
起源の場所: 広東省、中国
ブランド名: KING CROWN
証明: RoHs
お支払配送条件
パッケージの詳細: カートンボックス
受渡し時間: 45日
支払条件: T/T、L/C
供給の能力: 1か月あたり1000セット
製品の説明
Digital Side Mirror Camera System with Dual HD Cameras Wide-Angle Blind Spot Monitoring
Digital Side Mirror Camera System with Dual HD Cameras Wide-Angle Blind Spot Monitoring Truck & Bus Electronic Mirror Replacement
Product Selling Points
  • Full-Screen Vertical Display delivers a larger and clearer viewing area than traditional side mirrors.

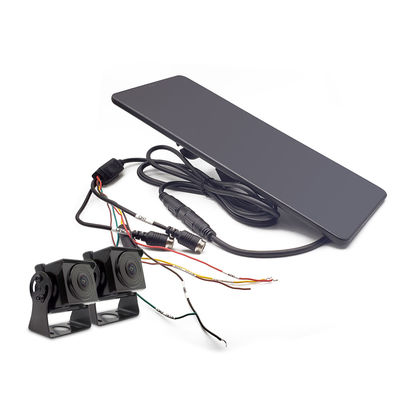

  • Dual HD camera modules offer upper + lower views simultaneously for complete blind-spot coverage.
  • Anti-glare display technology ensures excellent visibility in rain, fog, nighttime, and backlight scenes.
  • Real-time lane, curb, and obstacle visibility enhances driver safety during lane changes and tight turns.
  • Durable automotive-grade housing engineered for long-term vibration resistance in commercial fleets.
  • Flexible mounting bracket fits a wide range of buses, trucks, logistics vehicles, and engineering equipment.
Product Introduction

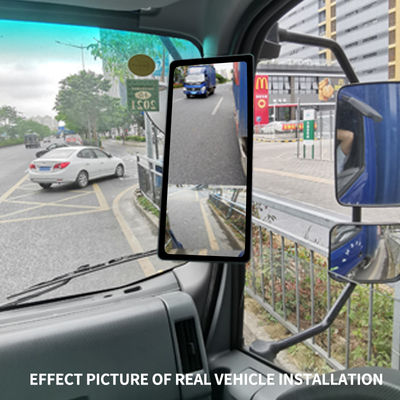

The Digital Side Mirror Camera System is designed to replace traditional mirrors on commercial vehicles, offering a clearer, wider, and safer driving experience. Equipped with dual HD cameras, the system displays both upper and lower blind-spot zones in real time, ensuring drivers can see approaching vehicles, pedestrians, and obstacles with greater accuracy. Its vertical high-brightness display maintains excellent clarity in all weather conditions—including rain, low light, and strong sunlight. Engineered for heavy-duty operations, the compact camera modules withstand shock, vibration, and outdoor exposure. The system enhances safety during overtaking, reversing, turning, and lane changing, making it an ideal solution for logistics fleets, buses, engineering vehicles, and long-haul trucks seeking to upgrade to modern electronic mirror technology.
Technical Specification
Specification Details
Display Type Vertical Automotive HD Digital Screen
Camera Resolution 720P / 1080P (optional)
Camera Type Dual-lens side view cameras
Viewing Angle Ultra-wide angle for upper + lower coverage
Night Vision Low-light sensor + HDR enhancement
Waterproof Rating IP67/IP69K (camera modules)
Operating Voltage 9V-36V wide-voltage input
Operating Temperature -20°C to +70°C
Installation Adjustable multi-joint mounting bracket
Applications Trucks, buses, vans, trailers, engineering vehicles
Feature Highlights
  • Wide-Angle Blind Spot Monitoring - Upper and lower views eliminate traditional mirror dead zones.
  • High-Definition Night Vision - Clear imaging in tunnels, nighttime, and rain.
  • Anti-Glare Vertical Display - Reduces reflection and maintains visibility in strong sunlight.
  • Durable Outdoor Camera Housing - Waterproof, dustproof, and vibration-resistant for heavy-duty fleets.
  • Real-Time Dual-View Integration - Seamless switching for turning, reversing, and overtaking.
Description
Designed for global commercial fleets, this digital side mirror camera system supports safe operations in markets such as Europe, the Middle East, Southeast Asia, and South America. Its wide-angle blind-spot monitoring and HD night-vision features meet the safety demands of transportation companies and logistics operators. SEO keywords: digital side mirror, electronic mirror system, truck blind spot camera, HD side view camera, bus mirror replacement, commercial vehicle safety system.
Standard Q&A Section
Q1: Can this digital mirror replace traditional truck mirrors?
Yes. It provides wider coverage, improved visibility, and fewer blind spots compared to traditional mirrors.
Q2: Does it work in rain or nighttime conditions?
The system uses HDR + low-light sensors with anti-glare coating for stable imaging in all weather conditions.
Q3: Is installation complicated?
No. The adjustable multi-joint bracket fits most truck and bus mirror positions, making installation straightforward.
Q4: Can it operate on 24V heavy-duty vehicles?
Yes. It supports 9V-36V for compatibility with all commercial vehicles.
VisionCarCamera Brand Advantages
VisionCarCamera offers over 15 years of professional experience in vehicle imaging, safety systems, and AI-enhanced camera solutions. Our factory supports full OEM/ODM customization, including private-label production, interface adaptation, cable customization, and firmware development. All products meet international standards such as CE, FCC, RoHS, and ISO9001, and our supply capabilities cover Europe, North America, the Middle East, South America, and Asia. We deliver high-reliability systems trusted by global fleet operators and automotive brands.
